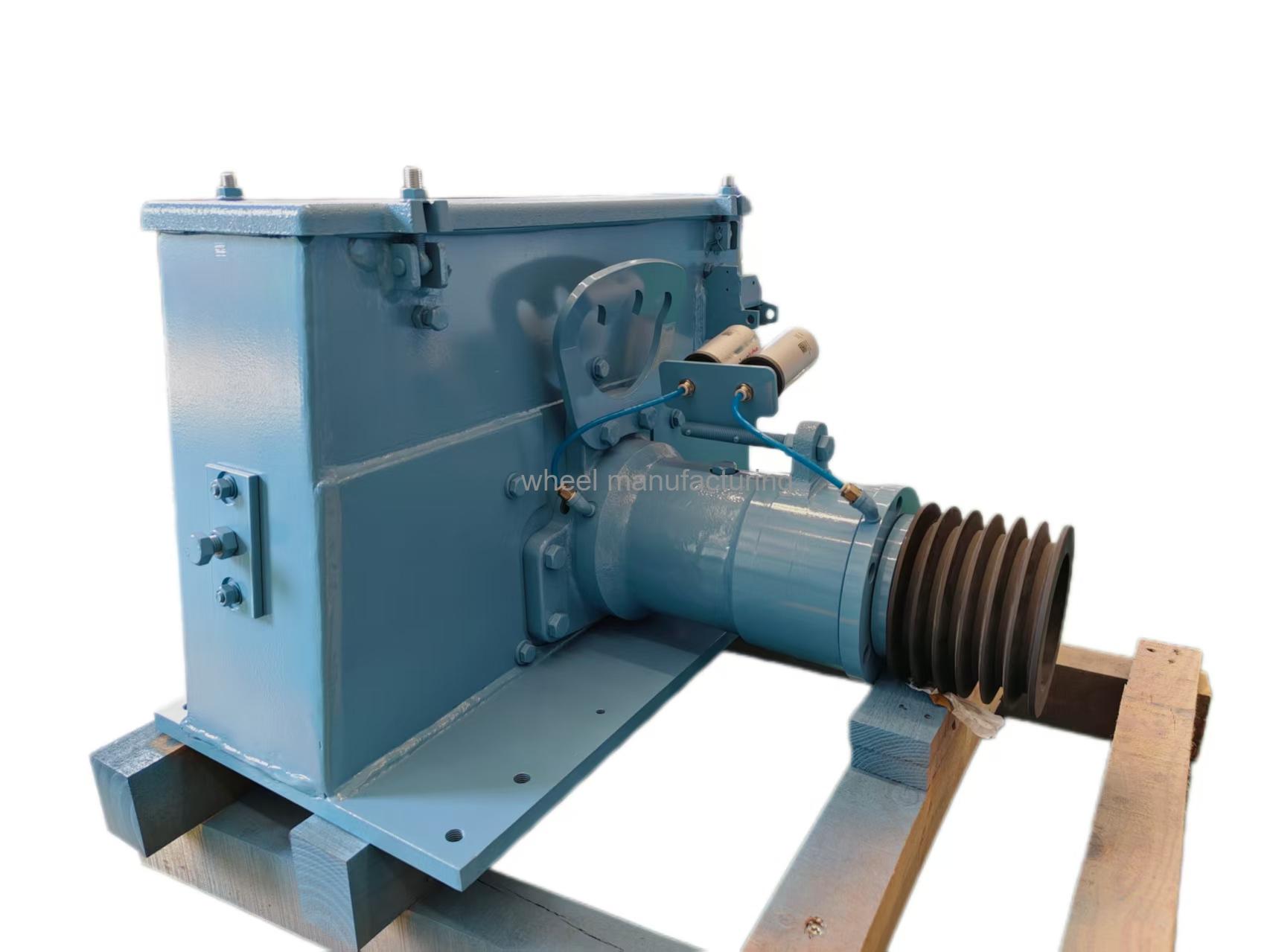

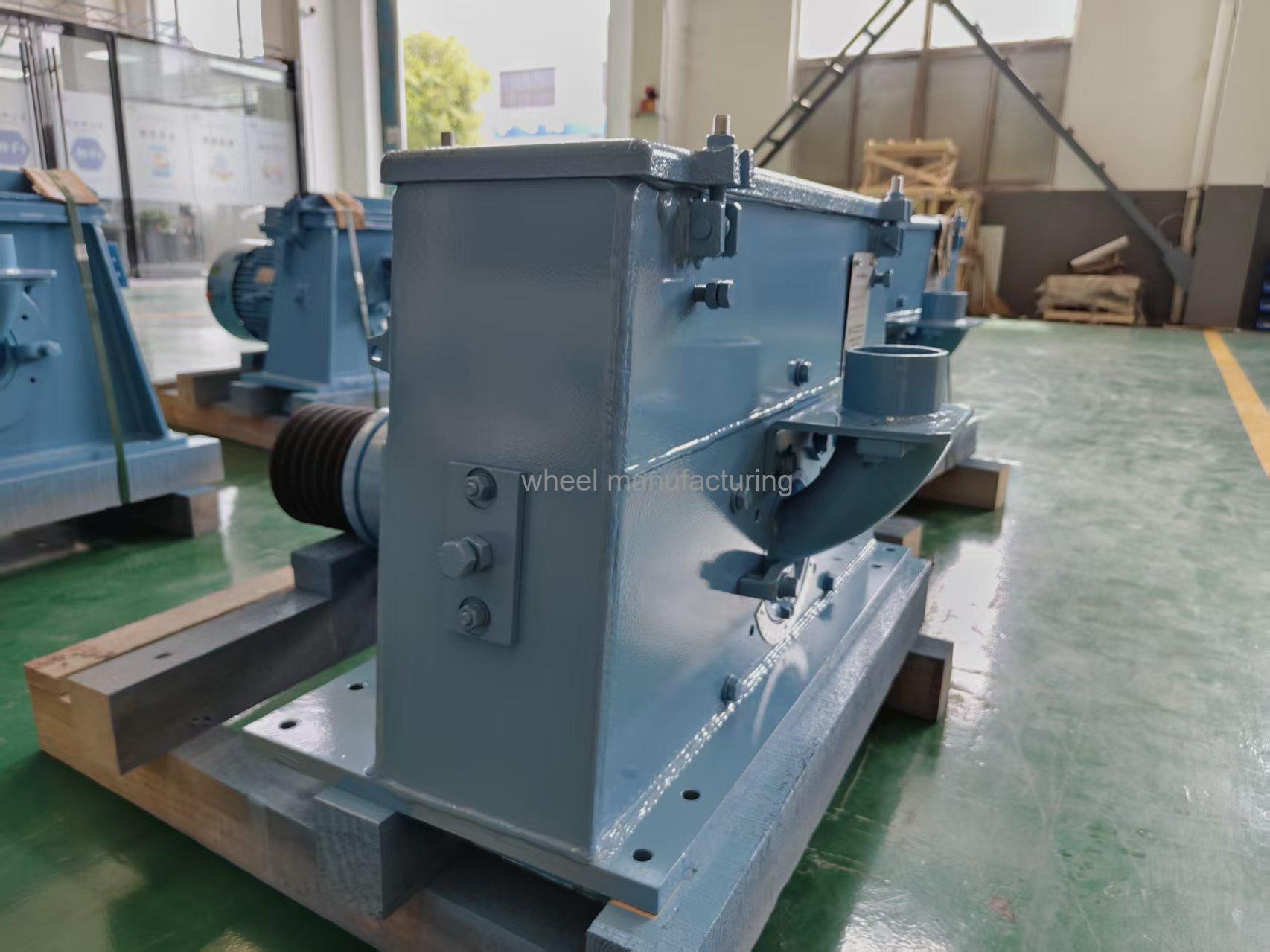

Q1: What foundry applications is the WWF 500 blast wheel designed for?

It is built for heavy-duty surface treatment in foundry mass production, dedicated to sand removal, oxide scale cleaning, descaling and surface strengthening of cast iron, cast steel and alloy castings as well as forgings. It matches tumble belt, roller throughfeed and hanger-type shot blasting machines widely used in foundry workshops.

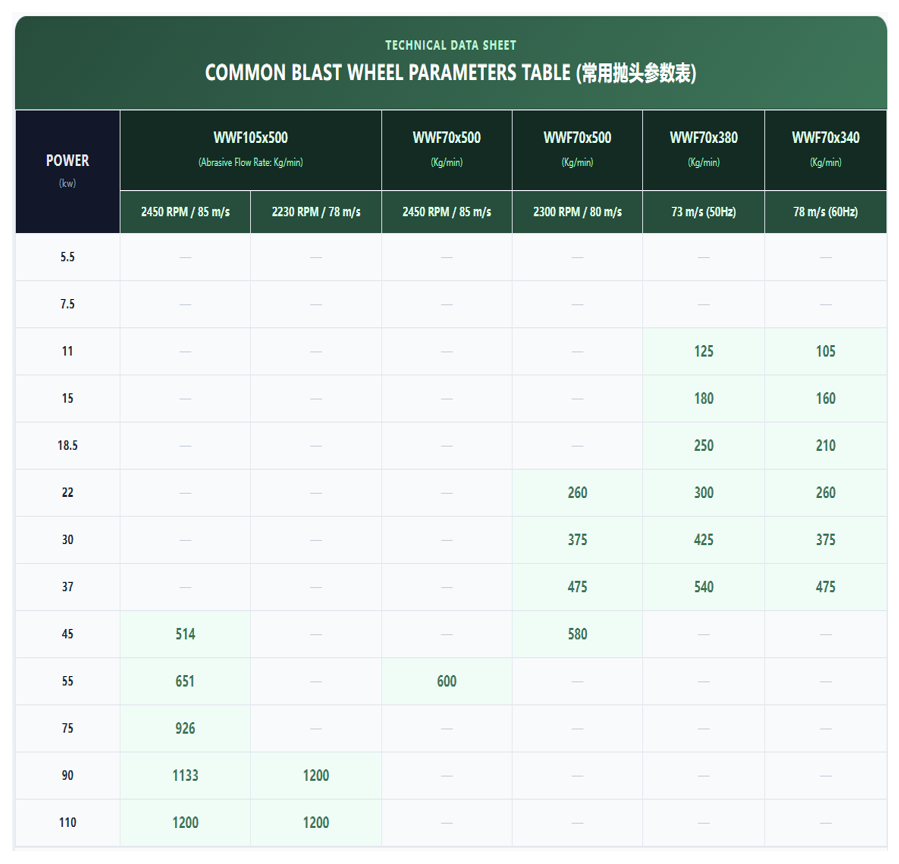

Q2: What are its core technical specifications?

Standard configuration is equipped with a 22–110 KW heavy-duty motor, delivers a maximum blasting capacity of 500 kg/min and a projectile velocity of 73–85 m/s. The blast direction is 360° adjustable, providing high-impact, uniform coverage to handle thick residual sand and heavy oxide layers on cast workpieces.

Q3: What advantages does it offer over ordinary blast wheels in foundry operations?

It adopts high-chromium wear-resistant components and an optimized impeller structure, improving cleaning efficiency by 20–30% while lowering abrasive consumption. Its modular design simplifies maintenance, and its stable performance under 24h/7days continuous load effectively reduces production downtime for high-output foundries.

Q4: What types of blasting media are compatible with the WWF 500?

It works with all mainstream foundry abrasives including cast steel shot, steel grit, stainless steel shot and ceramic beads, supporting grain sizes from S110 to S780. Media type and size can be selected based on casting material, target surface roughness and required cleaning intensity.

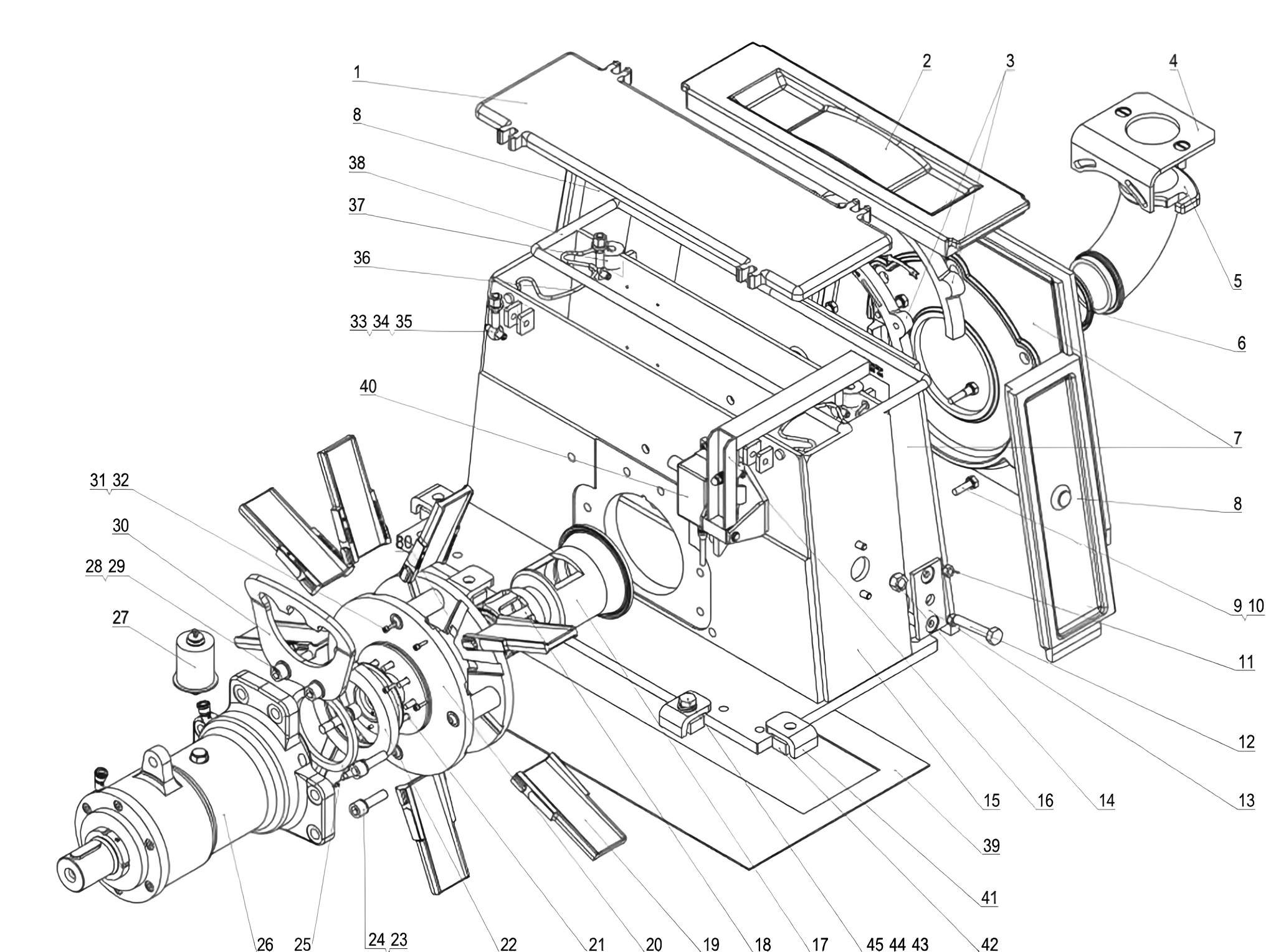

Q5: What are the main wearing parts and how long do they last?

Core wear parts include blast blades, impeller, control cage and side liners. Made of high-chromium molybdenum alloy, they have a service life of 800–1500 working hours under standard foundry conditions. Actual lifespan varies with abrasive hardness, working load and daily maintenance quality.

Q6: Can it replace blast wheels from other brands on existing shot blasting machines?

Yes. It follows universal flange mounting dimensions for mainstream blast wheel models and can be directly retrofitted on most domestic and imported shot blasting equipment. Custom adapter plates are available for non-standard mounting interfaces to minimize modification work.

Q7: How does it adapt to the high-dust environment of foundry workshops?

It is fitted with a fully sealed bearing assembly with dust-proof and heat-dissipating structure, blocking metal dust and abrasive particles from entering core components. The heavy-duty motor also has overload and overheat protection, ensuring reliable long-term operation in harsh foundry working conditions.

Q8: What routine maintenance is essential for long service life?
