HTF Overhead monorail blast cleaning machines for Foundry

  • - Heavy-duty overhead monorail shot blasting systems designed for foundries processing large, heavy and complex castings.

  • - The HTF series combines overhead workpiece handling, 360° rotation, multiple blast wheels and abrasive recovery to provide a configurable solution for casting sand removal and surface cleaning.

  • - Machine configuration can be adapted to your casting dimensions, workpiece weight, production requirements and factory layout.

HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
img of detail_inquiryInquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
HTF Overhead Hook Shot Blasting Machine
Product Detail

Product Introduction

HTF overhead monorail shot blasting machine cleaning large castings in the blast chamber

The HTF series is an overhead monorail shot blasting solution for foundries that need to clean medium to large castings and other heavy workpieces.Unlike conventional tumble-type blasting systems, the overhead monorail configuration transports individual workpieces on hooks through the blast chamber. The workpiece can rotate during blasting, allowing different surfaces to be exposed to the abrasive stream.The system can be configured with multiple blast wheels and an abrasive recovery system according to the required blast coverage, workpiece geometry and production requirements.

Key Features & Advantages

Overhead Monorail Handling

Workpieces hang individually and travel through the chamber, safely handling large, heavy, or complex castings up to 1,500 mm swing diameter and 2,100 mm hook height.

360° Rotation, No Dead Corners

Workpieces rotate during blasting, exposing recesses and irregular geometries to the abrasive stream for consistent, thorough cleaning.

Configurable Blast Power

Equipped with 2-9centrifugal blast wheels at 15-37 kW each, matched to your workpiece size and cleaning requirements.

Abrasive Recovery & Recycling

Reusable media is collected and returned to the blast cycle, cutting media consumption and manual handling of spent abrasive.

Batch or Continuous Operation

Configured for batch production or integrated into a continuous line to match your production volume and material flow.

Engineered Around Your Production

Chamber, blast wheels, and handling are configured to your part size, weight, volume, and factory space, with engineering support throughout.

How It Works

Six simple steps, fully automated, from loading the casting to a clean, ready-to-paint surface. Want to understand the full shot blasting process? Read our shot blasting process guide.

01

Load the Workpiece

The casting is loaded onto the overhead hook or handling system.

02

Transfer into the Blast Chamber

The overhead monorail transports the workpiece into the blasting chamber according to the configured production process.

03

Rotate the Workpiece

The workpiece rotates during blasting to expose different surfaces to the abrasive stream.

04

Blast with Multiple Wheels

Centrifugal blast wheels accelerate abrasive media toward the casting surface to remove residual sand and other surface contaminants.

05

Recover the Abrasive

Used abrasive is collected, separated, and returned to the abrasive circulation system for continued operation.

06

Unload the Cleaned Casting

After the programmed blasting cycle, the workpiece exits the blast chamber and is transferred to the unloading position or the next production process.

Technical Specifications

HTF Overhead Monorail Shot Blasting Machine
Product NameHTF Overhead Monorail Shot Blasting Machine
ApplicationLarge and heavy castings
Workpiece rotation360°
Blast wheel configuration2-9 wheels
Blast wheel power15-37 kW per wheel
Maximum swing diameterUp to 1,500 mm
Maximum hook heightUp to 2,100 mm
Production configurationBatch or continuous
Installation optionPitless configuration available

HTF machine overall dimension drawing with swing diameter, hook height, and chamber dimensions

Overall machine layout and workpiece dimension references. Browse our complete shot blasting machine range.

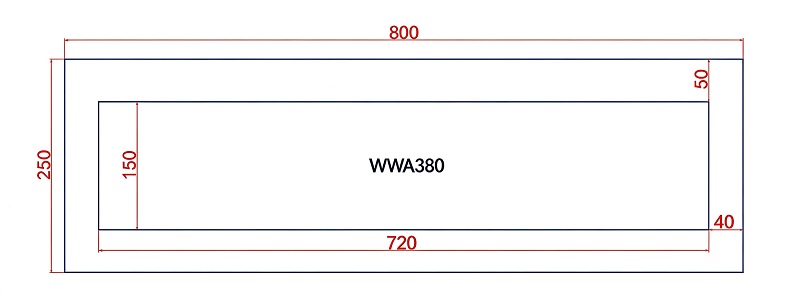

Blast Wheel Installation Dimensions (WWA380)

The WWA380 blast wheel is a direct-fit component. Installation dimensions are shown below for easy integration into new or existing machines.

WWA380 blast wheel installation dimensionsWWA380 blast wheel installation dimensions

All dimensions in mm. Please verify bolt-hole positions against your existing wheel base before ordering.

Machine Configuration & Engineering Support

Your shot blasting machine should be built around your workpieces, not the other way around. Follow the steps below to get the right configuration.

1

Send Your Workpiece Info

Part dimensions, weight, geometry, production rate, cleaning requirement, and factory layout.

2

Engineering Review

Our engineers evaluate your casting drawing and application details to define the suitable machine dimensions, blast wheel setup, and handling arrangement.

3

Configuration & Model Recommendation

Considering your part size, weight, capacity, geometry, blast coverage, floor space, and loading method, we recommend the right model and configuration.

4

Technical Documentation

You receive product specifications, machine dimensions, CAD drawings, configuration information, and installation requirements.

5

Installation & After-Sales Support

Installation and commissioning support is arranged per project, with technical assistance and maintenance guidance throughout the equipment's service life.


Industry Applications

The HTF series is built for foundries cleaning medium to large castings and heavy workpieces.

Residual Molding Sand Removal

Removes leftover molding sand from casting surfaces after the shakeout process.

Core Sand Removal

Cleans internal cavities by removing core sand from complex castings.

Casting Surface Cleaning

Delivers a clean, uniformly textured surface ready for further processing.

Loose Scale & Contamination Removal

Strips loose scale and surface contamination from castings and heat-treated parts.

Preparation for Subsequent Processes

Prepares casting surfaces for painting, coating, or other downstream operations.

Large & Irregular Castings

Cleans large components with irregular geometries that tumble-type machines cannot process.

Explore our shot blasting solutions for the foundry, steel, shipbuilding, and automotive industries.

Why Choose Wheel (Changzhou) Intelligent Manufacturing?

Two Decades of Expertise

20+ years of shot blasting experience and a dedicated team of 30+ professionals, engineering reliable surface treatment machines for foundries and metal fabrication worldwide. Learn more about our company.

Rigorous Pre-Shipment Testing

Every component is strictly inspected and key assemblies are pre-tested in-house before shipment, so your machine arrives ready for installation with no surprises on site.

Three Business Divisions

Shot blasting machines, dust collectors, and installation & maintenance - one supplier for your complete surface treatment line.

Global Engineering Network

Authorized agent of Carrier, the global leader in foundry vibratory equipment, backed by senior engineers and a worldwide local agent network.



Certifications & Qualifications

Our quality, safety, and compliance are validated by industry certifications, reflecting our commitment to international standards in equipment performance and operational excellence.

Wheel Intelligent Quality Certification 1Wheel Intelligent Quality Certification 2Wheel Intelligent Quality Certification 3
Minimum order1 unit
Lead time (customized)3-5 months
Payment30% T/T + 70% L/C
Trade termsFOB Shanghai
PackingExport-standard
Warranty1 year
Wear parts stockDelivery in 2 weeks

Frequently Asked Questions

Quick answers to common questions. More questions? Visit our full FAQ page.

Can large and heavy castings be processed?

Yes. The overhead monorail configuration is specifically designed for applications involving large or heavy workpieces. The final machine configuration is determined from your actual workpiece dimensions and weight, so the machine is matched to your parts, not the other way around.

Can the workpiece rotate during blasting?

Yes. The HTF system incorporates workpiece rotation during blasting, exposing different surfaces to the abrasive stream so recesses and irregular geometries are cleaned thoroughly, with no dead corners left untreated.

Can the machine remove residual casting sand?

Casting sand removal is one of the intended applications of the HTF series. The required blasting configuration depends on the type of sand, casting geometry, surface condition, and the required cleaning result.

Can the HTF system be customized?

Yes. The machine configuration can be adapted according to your workpiece dimensions, weight, production requirements, blast coverage, and factory layout, supporting batch or continuous production.

How can I get a quotation?

Send your casting details, production requirements, or CAD drawing through our inquiry form. Our engineering team can review the application and provide a suitable equipment recommendation and quotation.
