Working Principle
In the DTF wheel blast machine, castings are continuously cleaned during an uninterrupted feeding process. The workpieces tumble in various directions within an oscillating chamber, ensuring all surfaces are impacted by the abrasive stream.
Alternative Version (More Technical):
The operational principle of the DTF series blast machine involves continuous processing of castings through a steady feed system. Components rotate multidirectionally in an oscillating chamber, exposing all surfaces uniformly to the abrasive blast flow.
Advanced DTF Blast System: Polygon-Trough Design for Superior Cleaning Performance
Unlike conventional drum-type throughfeed systems, the DTF series incorporates an innovative polygon-shaped trough with strategically positioned blast wheels aligned along the longitudinal axis above the casting flow path. This engineered configuration delivers unmatched cleaning efficiency for foundry operations.
Product Advantages
Easy to operate and maintain
Long service life
High efficiency with low maintenance cost
Wear-resistant parts made of special high-durability alloy
Dual-center disc design
Choice of direct drive or belt drive
Key Advantages of Our Patented Design:
Continuous Automated Processing
Handles mixed castings, runners, and risers in a single automated sequence – eliminating manual intervention
Optimized Surface Exposure
Geometric trough design ensures 360° blast coverage by exposing all part surfaces to abrasive streams
Gentle Yet Effective Tumbling
Precision-engineered tumbling action protects delicate castings while maintaining maximum cleaning efficiency
Technical Highlights
✓ Polygon-trough blast machine
✓ Automated casting cleaning system
✓ Continuous throughfeed shot blasting
✓ Mixed casting processing equipment
✓ Foundry automation solutions
✓ No-tumble abrasive blasting technology
Application Scenarios
✓ Ideal for automotive castings, valve bodies, pipe fittings, and complex geometry components requiring complete surface treatment.
✓ Experience the difference between conventional drum systems and our engineered polygon-trough technology – request a product demonstration today.
Application at customer's site

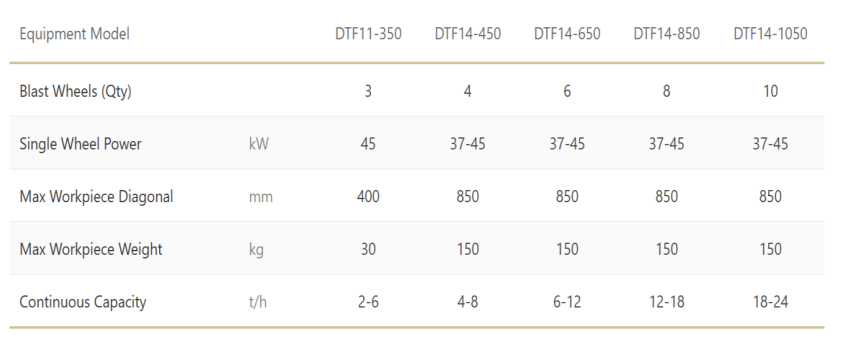

Technical Parameters
Compared with traditional drum-type through-feed machines, Wheel DTF model features a polygonal trough design. The blast wheels are aligned longitudinally and positioned directly above the continuous flow of castings.
This innovative configuration offers several key advantages:
Continuous cleaning of mixed castings—including runners and risers—without the need for any manual intervention.
The polygon-shaped trough provides complete exposure of all casting surfaces to the blast stream while ensuring gentle and uniform tumbling throughout the process.
The system provides an extended blast cleaning zone, allowing castings to be evenly distributed for consistent processing.
With the blast wheels positioned directly above the material flow, abrasive energy is used with maximum efficiency.
Additional benefits of this design include:
No moving mechanical components inside the blasting area, eliminating the risk of workpiece jamming
Stable and controlled throughput of castings
High output capacity of up to 35 tons per hour, handling individual parts up to 150 kg
Simple and seamless integration of the DTF machine into existing production lines
FAQs: Automatic Throughfeed Blast Cleaning Machine (DTF Series)
Q1: What kinds of workpieces is the DTF machine designed for?It is engineered for continuous processing of long and flat metal workpieces, including steel plates, profiles, H-beams, pipes, structural parts and batch castings with regular shapes. Q2: What is its main advantage over batch-type blast machines?The throughfeed design enables non-stop production via roller conveyor feeding, delivering much higher throughput, consistent cleaning quality and lower labor input, and can be directly embedded into automated production lines. Q3: What blasting media can be used with this machine?It is compatible with steel shot, steel grit, stainless steel shot, aluminum oxide and glass beads. Media can be selected based on workpiece material and target surface finish, from heavy descaling to fine surface preparation. Q4: How does it ensure uniform cleaning on all workpiece surfaces?Multiple high-efficiency blast wheels are installed at optimized angles around the sealed chamber to cover top, bottom and side surfaces. Conveying speed is adjustable to match different cleaning intensity requirements.
