To meet the demands of complex modern manufacturing, the HTA Customized Overhead Rail Hook(Hanger) Shot Blasting Machine engineered by Wheel Changzhou Intelligent Technology Co., Ltd. offers highly efficient operational flexibility for diverse workpiece geometries. The equipment is widely used for aluminum alloys, welded structures, deburring, or shot peening reinforcement of dynamically stressed components.

Model classification (by track / operation mode), applicable working conditions

Model type: Hook type (single hook, double hooks), continuous track type, straight-through type / circular / Y-shaped track, supports intermittent batch operation and fully automatic continuous operation.

Overall material, body craftsmanship, protection design

Body frame: Entirely made of thick steel welded together, structurally stable and with strong load-bearing capacity; integrated frame design, resistant to vibration and deformation, and does not deform under long-term heavy load operation.

Cavity structure: Low installation threshold, low infrastructure cost; fully enclosed shot blasting chamber, sealed to prevent dust and leakage.

Overall equipment form, layout, frame structure:

Appearance: Compact layout, small floor space, suitable for limited workshop space.

Hook specifications, load capacity, quantity

Hook unit: Equipped with high-strength suspended hooks, with a load range from several hundred kilograms to several tons available for selection; multi-hook circulation design, material loading and unloading and shot blasting are carried out simultaneously, enhancing production capacity.

Hanging fixture compatibility: Can be paired with dedicated workpiece hanging fixtures, capable of stably suspending irregular-shaped parts, heavy parts, and thin-walled parts, with no collision or entanglement of the workpieces.

Walking mechanism, driving method; workpiece rotation / oscillation function, speed adjustment, motion logic

Motion function: The hook is equipped with a 360° automatic rotation + reciprocating swing mechanism, allowing the workpiece to be rotated at multiple angles without any cleaning dead zones; variable frequency speed regulation, the rotational speed can be adjusted as needed, suitable for different materials, complex cavities / deep hole workpieces.

Ejection angle, impact range, power parameters of the shot blasting equipment (shot blasting wheel) configuration, model, quantity, layout.

Shot blasting machine: Equipped with an efficient direct-connected shot blasting unit, it is powerful and has a fast blasting speed; multiple shot blasting units are arranged in a three-dimensional layout to fully cover the surface of the workpiece.

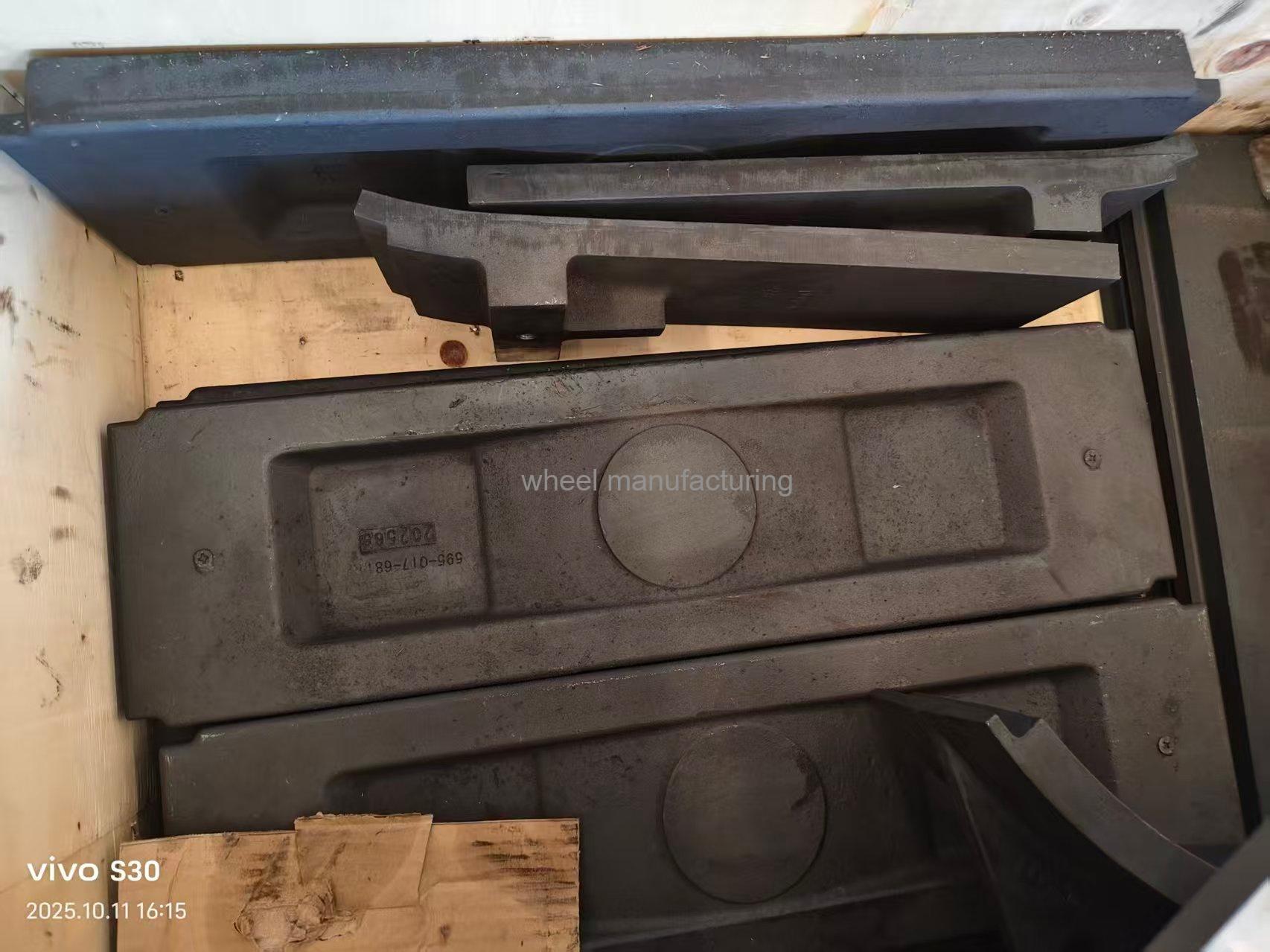

Inner lining protection, wear-resistant components Wear-resistant protection.

High-maintenance protective plates and rubber protective curtains are installed inside the shot blasting chamber to withstand the impact of shot pellets, reduce equipment wear, and extend the overall lifespan of the machine.

Sorting device, waste separation capacity

Air separation separator: High-precision air separation mechanism, automatically separates qualified projectiles, crushed pellet materials, dust, and oxide scale residues, ensuring stable projectile quality.

Dust removal model, dust removal efficiency, sealing design, waste gas dust treatment, environmental protection compliance situation

Dust removal configuration: Equipped with pulse-type bag-type dust collector, dust collection efficiency ≥ 99%, no dust flying in the workshop.

Operating characteristics: Automatic dust cleaning function, no need for frequent manual cleaning of filter bags; low noise, in line with workshop noise standards.

Overall sealing: The entire machine has a fully enclosed structure, combined with soft sealing components, to prevent dust and projectiles from leaking out, meeting environmental protection acceptance requirements.

Control mode (Manual / Automatic / PLC program control)

Control System: Utilizes PLC programmable controller combined with touch screen operation. The human-machine interface is simple and intuitive. Parameters can be set in one click (such as shot blasting time, walking speed, rotation speed, etc.).

Operation Modes: Supports two modes: manual single-step debugging and fully automatic continuous operation. Debugging and mass production can be flexibly switched.

Program Pre-setting, Safety Interlock

Safety Protection: Equipped with multiple safety interlocks, emergency stop switches, and interlocks for the cabin door. Once the cabin door is opened, the equipment will immediately stop, eliminating potential safety hazards; complete protection functions for overload, phase missing, and leakage.

Frequency Conversion, Speed Regulation, Adjustable Parameters Function

Frequency Conversion Energy Saving: The entire machine adopts frequency conversion drive in multiple places, resulting in lower energy consumption and more stable operation.

Product Advantages

In the blasting chamber, the combination of rotation and movement ensures thorough cleaning, even for the most challenging and complex workpieces.

We provide hanger-type shot blasting machines in various models and capacities. Depending on your requirements, both batch processing and continuous processing options are available, delivering outstanding cost-performance.

Application Scenarios

✓ For rust and scale removal on non-cast parts; suitable for rods, small gears, and similar industries.Specifically designed to handle delicate yet complex aluminum components—from engine blocks and wheels to suspension parts—our equipment ensures flawless cleaning, deburring, and shot peening without compromising structural integrity.

Technical Parameters

Are your aluminum parts, forgings, or structural fabrications suffering from incomplete cleaning, hard-to-reach areas, or inefficient processing? Our Hook-Type Shot Blasting Machine is the professional solution engineered for your needs.

This system is specifically designed to handle irregularly shaped, delicate, or heavy workpieces with internal cavities or deep holes.

Core Applications Include:

• Forging & Heat Treatment: Quickly strips oxide layers from forgings and heat-treated parts, revealing a clean metal base.

• Machinery & Automotive Manufacturing: Performs shot peening on critical components like gears, crankshafts, and connecting rods to significantly enhance their fatigue strength and durability.

We understand that needs vary across industries. That's why we are committed to providing the most cost-effective customized hook shot blasting solutions. Let us help you improve your product quality and production efficiency.

Frequently Asked Questions (FAQ)

Q1: What types of parts are best for a Hook-Type Shot Blasting Machine?
A: Our hook-type machines are perfect for parts with complex shapes that are difficult to clean. Think of things like engine blocks, welded frames, and forgings. Because the parts hang and rotate, the shot (abrasive media) hits every surface, nook, and cranny, ensuring a thorough clean without the parts tangling.

Q2: How large and heavy of a part can your machine handle?
A: This is a key question, and the good news is our machines are highly customizable. We design the blast chamber and the hook's lifting capacity based on your specific parts. We offer models that can handle parts from a few hundred kilograms to several tons. Tell us the max size and weight of your parts, and we'll recommend the perfect model for you.

Q3: What's the main advantage of a Hook-Type machine over a Through-Feed type?
A: The main advantages are superior cleaning quality and flexibility. Through-feed machines are great for high-volume, flat parts like metal sheets or bars. Our hook-type machines rotate parts, ensuring a uniform clean or peening on all sides of complex 3D shapes. This makes them ideal for shops that handle a wide variety of parts in smaller batches.

Q4: Is the dust collection effective and environmentally friendly?
A: Yes, absolutely. Every machine comes with a high-efficiency pulse-jet dust collector that captures over 99% of the dust. This keeps your workshop air clean and ensures the operation meets environmental standards. An integrated recycling system also automatically separates reusable abrasive from dust and debris, saving you money on media.

Q5: What kind of support do you offer after purchase?
A: We provide full support to get you up and running. Our service includes installation guidance, machine commissioning, and comprehensive operator training. We also offer reliable long-term technical support and spare parts supply to minimize any downtime and keep your productivity high.
