The cleaning nozzle is driven by a chain/rope drive mechanism. The drive station is located outside on the cassette-type filter housing.
The compressed air facility with compressed air tank and way valves is mounted on the cleaned process gas chamber and connected to the cleaning nozzle by a flexible hose.
Specifications
Air volume | 5,000~500,000 m3/h for single housing |
Filter area | 82~2519 m2 for single housing |
Max. dust load | >300g/m3 |
Operation temperature | Standard version up to 130 °C Optional high temp. version up to 220 °C |
Manner of work | negative pressure |
Strength | Standard version up to -600daPa Reinforced version up to -3200daPa |
Method of cleaning | Compressed air An operating pressure of at least 6.5 bar (max. 8 bar) in the compressed air tank is required. The compressed air supplied must be dry and free of oil and dust and the dew-point of the compressed air must correspond with the climatic terms of the place of installation in order to ensure trouble-free cleaning. |

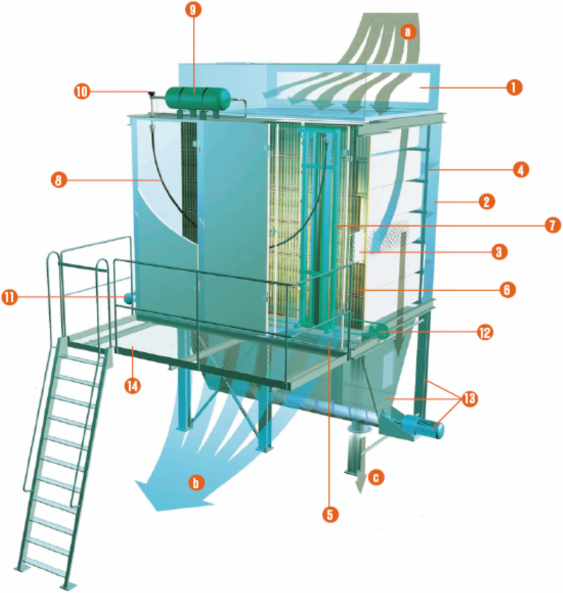

Components
1. Dirty gas hood
2. Dirty gas chamber
3. Filter bag with spacer mat
4. Filter bag support
5. Cleaning gas filter chamber
6. Slotted wall with clamping frame
7. Cleaning car/cleaning nozzle
8. Compressed air cleaning hose
9. Compressed air tank
10. 2/2-way-valve
11. Drive station for cleaning car
12. Deflection station with indexing disc
13. Dust collection hopper with screw conveyor
14. Platform with ladder
A. Dirty gas entry
B. Cleaning air inlet
C. Clean gas exit
D. Dust discharge
