You use a roller conveyor shot blasting machine to clean steel beams. This machine takes away rust and old paint. It also removes other problems on the surface. When you work with H beams or I-beams, you get smoother surfaces. Large steel structures also become ready for painting or coating. Many industries use these machines to make their work better. They help save time and improve quality.

• The worldwide market for these machines is getting bigger. It is expected to keep growing until 2032.

Key Takeaways

• Roller conveyor shot blasting machines clean steel beams well. They take off rust, old paint, and dirt. This makes the surface smooth for new paint to stick better.

• These machines use automation and smart controls. This helps them work faster and gives the same results each time. One person can run the machine, so it saves money on workers.

• It is important to take care of the machine often. Make a plan to check and fix it. This keeps the machine safe and helps it last longer.

• These machines are good for the environment. They have dust collectors that keep the air clean. They also reuse abrasive materials. This helps them follow safety rules.

• Picking the right machine means thinking about size and how much it can clean. You also need to check if it works with the abrasive media you use. This makes sure it fits your cleaning jobs.

Roller conveyor process for beams

Conveyor loading and material flow

First, you put steel beams or metal parts on the roller conveyor. The conveyor can change to fit different sizes and weights. You can load big H-beams, I-beams, pipes, or flat steel plates. The conveyor speed can be changed. You use an electrical control system to set the speed. This helps you move each piece through the machine at the right pace. It is easy to handle heavy beams and lighter profiles.

Tip: Make sure beams are straight on the rollers. This helps the machine clean all surfaces evenly.

Here is a table showing what you can clean with a roller conveyor shot blasting machine:

Shot blasting operation

When the beam goes into the cleaning chamber, the shot blasting starts. The machine has a strong motor that spins an impeller very fast. Abrasive media, like steel shot, comes from a hopper and moves into the blaster through a pipe. The impeller blades make the shot go faster using centrifugal force. The shot hits the beam at speeds of 60 to 80 meters per second. It makes a fan-shaped stream that covers the whole beam. This removes rust, old paint, and other problems.

Here is how the shot blasting works, step by step:

1. Put the workpiece in the cleaning chamber.

2. The motor spins the impeller fast.

3. Abrasive shot comes from the hopper into the blaster.

4. The impeller blades make the shot go faster.

5. The shot hits the workpiece and cleans it quickly and evenly.

This process works for many shapes and sizes. You can clean H-beams, I-beams, pipes, steel plates, and complex fabricated structures.

Automation and control

Modern roller conveyor shot blasting machines use advanced automation and control systems. These systems help you get good results every time. Programmable Logic Controllers (PLCs) let you set speed, blasting time, and other settings. Some machines use robots to load and unload beams. This makes the process faster and safer. Remote monitoring lets you watch the process live and make changes if needed.

New machines use less energy and make less waste. Some companies use smart control systems with sensors. These sensors check the cleaning and adjust the machine for best performance. Automated systems make sure every part of the beam gets cleaned. This includes corners and flanges. This stops rust and helps paint stick better.

Note: Automation saves time and helps you avoid mistakes. You get great results every time, no matter how many beams you clean.

Roller conveyor shot blasting machines let you clean many types of steel structures. You can process small profiles, large beams, and plates. This makes them a good choice for construction, fabrication, and other industries.

Main features and components

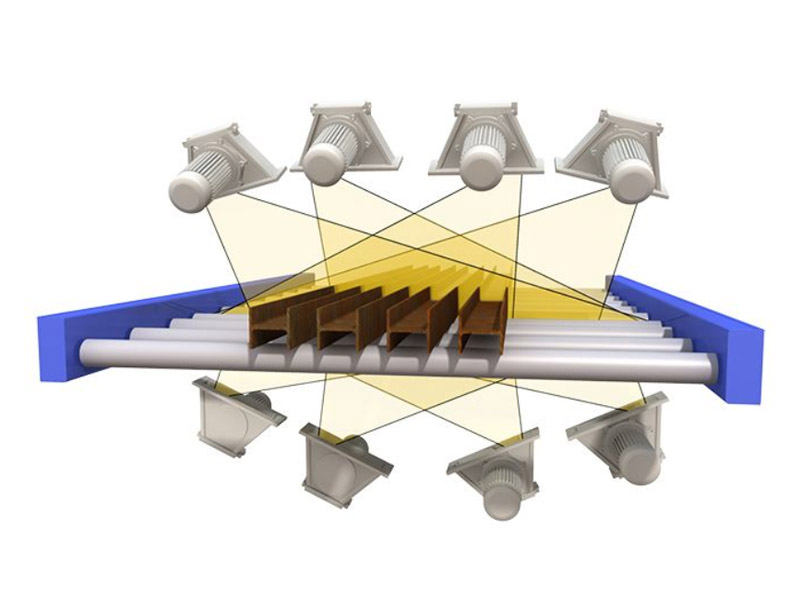

Blast wheels and abrasive media

You will find that the blast wheels are the heart of the roller conveyor shot blasting machine. These wheels spin at high speeds and throw abrasive media, like steel shot, onto the surface of beams. The number of blast wheels can range from 4 to 16, and each wheel has its own power rating. The arrangement of these wheels covers every part of the beam, so you do not miss any spots. If you set the speed and angle correctly, you get a clean and smooth surface. The machine can adjust the speed of the wheels to match different cleaning needs. This helps you save energy and get the best results.

Tip: Use the right abrasive media for your material. Steel shot works well for most beams and structures.

Dust collection system

The dust collection system keeps your workspace clean and safe. When you use a roller conveyor shot blasting machine, dust and debris come off the beams. The dust collector pulls these particles out of the air and traps them. This system helps you meet health and safety rules. It also protects workers from breathing in harmful dust. You will notice that a good dust collection system makes the air clearer and the area around the machine easier to work in.

Note: A strong dust collection system helps your business follow environmental laws and keeps your team healthy.

Safety and controls

You need to pay attention to safety and controls when you use these machines. The control cabinet lets you manage the whole process. You can set the speed, watch the system, and stop the machine in an emergency. Real-time diagnostics alert you to problems right away. Emergency stop buttons let you shut down the machine fast if something goes wrong. Before you use the machine, you should get training from an expert. The machine also goes through safety checks before it leaves the factory.

• The machine has a PLC control system and fault monitoring.

• Engineers teach you how to use the machine safely.

• The system checks itself for problems and warns you.

Safety first: Always follow the instructions and use the controls as trained.

Roller conveyor benefits for beams

Surface quality and adhesion

You want your steel beams to look clean and smooth. Roller conveyor shot blasting machines help you do this. These machines take off rust, scale, and old paint from all sides of the beam. The surface gets rough enough for paint or coating to stick well. This makes your paint last longer and keeps it from peeling. When you use this machine, you also use less abrasive material. The system recycles the steel shot, so you do not waste it. You get a better finish and save money on supplies.

Tip: A clean and rough surface helps paint and coatings stick better. This protects your beams from rust and damage.

Efficiency and cost savings

You can work faster and spend less money with a roller conveyor shot blasting machine. The machine cleans beams much faster than doing it by hand. You only need one person to load and run the machine. This lowers your labor costs and helps you finish jobs on time. Here are some important points:

• The cost to run the machine is about $20 per hour in the US. This includes power and maintenance.

• The machine is 4 to 5 times faster than cleaning by hand.

• One person can do the whole job, so you save on workers.

You also pay less for repairs and supplies than with other cleaning methods. The table below shows how roller conveyor shot blasting machines compare to other ways:

Note: High speed and low costs help you stay ahead in the steel business.

Environmental impact

You help the environment when you use a roller conveyor shot blasting machine. The machine has a dust removal system that keeps the air clean. It catches dust and stops it from getting into the air. The machine recycles steel shot, so there is very little waste. The closed design keeps dust from spreading and makes your workspace safer. Cartridge dust collectors keep emissions at or below 20 mg/m³. This meets strict air quality rules.

The table below shows how these machines help you follow environmental laws:

Remember: Using a roller conveyor shot blasting machine helps you follow the law and keeps your team safe.

Applications and selection

Key industries and uses

You can find roller conveyor shot blasting machines in many places. These machines clean steel beams and other metal parts. Here are some main industries that use these machines:

• Automotive Industry: They clean car bodies, chassis, and parts before painting or putting them together.

• Steel Manufacturing: They take off rust and scale from steel plates and big pieces.

• Shipbuilding: They treat large metal beams and profiles before welding and coating.

You also see these machines in construction, bridge building, and metal shops. They help make surfaces strong and clean for better results.

Tip: If you work with steel beams or big metal parts, you will probably need a roller conveyor shot blasting machine.

Choosing the right machine

You have to pick the best machine for your job. Think about these important things:

• Size and Capacity: Make sure the machine fits the size and number of beams you want to clean.

• Blast Media Compatibility: Pick a machine that works with the abrasive you need.

• Control Systems and Automation: Find easy controls and smart features.

• Maintenance and Service: Check if you can get spare parts and help when needed.

You should also look at safety features and how much energy it uses. The right machine helps you work faster and safer.

Note: Always match the shot blasting machine to your work needs. This helps you get the best cleaning and saves money.

Maintenance essentials

You must take care of your machine to keep it working well. Follow a regular maintenance plan. The table below shows what you should do and how often:

You should also check control cages and blast wheel blades often. Replace them if they look worn out. How often you do this depends on how much you use the machine and the type of abrasive. Always follow the schedule from the company that made the machine.

Tip: Good maintenance keeps your machine safe and helps it last longer.

You get lots of good things when you use roller conveyor shot blasting machines for beams. The table below lists the main benefits:

You get the best results if you pick the right machine and take care of it. You clean surfaces well and make your products better. You do not waste time and you finish jobs faster. You keep workers safe and help them get more done.

Think about what you need. A roller conveyor shot blasting machine can help you do your work better and make your beams last longer.

FAQ

What types of beams can you clean with a roller conveyor shot blasting machine?

You can use the machine to clean H-beams and I-beams. It also works for steel plates, pipes, and metal profiles. The machine can change to fit many shapes and sizes.

How often should you maintain your shot blasting machine?

Check and clean your machine every day. Do deeper maintenance each week, month, and year. This helps your machine stay safe and work well.

Is shot blasting safe for the environment?

Yes, it is safe for the environment. The machine has a dust collection system. It reuses abrasive media and does not need chemicals. This helps keep the air clean and follows safety rules.

Can one person operate the machine?

Yes, one trained person can use the machine. They can load, run, and watch the machine. Automation and safety controls make it easy and safe.
